A rack mounted AC/DC switching power supply is included. The customer can choose from a 23, 40, 60, 80, or 100 Amp 12V supply.


The system can include any number of Audio & PTT Delay Module to interface with radios operating on a trunked system. Control is provided on a rack panel so the user can easily change the audio delay for each trunked radio.


A variety of rack cases are offered to best fit the environment you will encounter. These range from Pelican/Storm briefcase style cases to 19" Shock Rack cases with integrated handle & wheels. A storage pouch is included.


Customization to your unique requirements is encouraged.


For more images of QuickLinx-M systems click here:

Typical

Four Radio

Design

Shock Case

Incident Command & Tactical Dispatch Systems

The heart of the QuickLinx-M is the NCS-C250 Mobile Multi-Switcher. The C250 connects four (4) radios to one (1) microphone and two (2) speakers and provides Selected and Unselected audio control. For more than 4 radios the NCS-C251 Expansion Unit is used to provide connectivity for up to eight (8) radios. Walk up ports for portable radios are provided in lieu of using a mobile radio. The unit has a built in crossband repeater with COR or VOX functionality. Other features incorporated in the unit include COR, Hook-Switch, Multi-Cast and Sidetone. The C250 is mounted to a standard 19” rack panel.

= Connectivity Simplified =

QuickLinx-M


The QuickLinx-M is a Portable Incident Command & Tactical Dispatch System configured as a “standard product” or customized to your unique requirements utilizing existing standardized components. The system is self-contained and easy to set up & operate and comprises an NCS-C250 Mobile Multi-Switcher along with customer supplied mobile radios, radio interface cabling, power supply, microphone, speakers with On/Off switches, headset interface jacks, antenna patch panel and cabling to connect to external AC or DC power sources.




QuickLinx-P

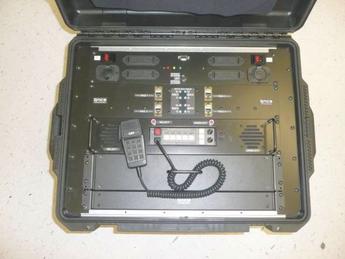

The QuickLinx-P is a lightweight portable command center. The kit is self contained and easy to set up and comprises an NCS-C250 Mobile Multi-Switcher, on board battery supplied power, palm microphone, speakers with on/off switches, headset interface jacks and cabling to connect to external DC and AC power sources. Provisions for charging of portable radios, when the system is operating on external power, are also provided. The system provides easily accessible adjustments for each radio's transmit & receive audio. A 3RU storage compartment is included to store radios & cables. A lid organizer is also included. Radio specific cabling is sold separately.


The heart of the QuickLinx-P  is the NCS-C250 Mobile Multi-Switcher. The C250 connects four (4) radios to one (1) microphone and two (2) speakers and provides Selected and Unselected audio control. The unit has a built in crossband repeater with VOX functionality. Optional features incorporated in the unit include Multi-Cast and Sidetone.  To accommodate trunked radios, optional Audio & PTT Delay Modules  with panel switch control can be added to the system.


The QuickLinx-P  is housed in a Pelican Storm Case, model number iM2750. The iM2750 case is unbreakable, waterproof, dust proof, chemical resistant and corrosion proof and includes integrated wheels and handle for easy transportation.
