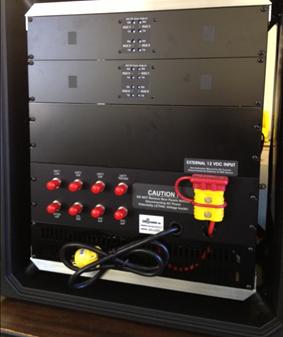

• Rear of System to Left
  • Connections for External AC & DC
  • Integrated Combiner for Harris Unity
  • Antenna port for Unity Low Band
  • 2 Antenna Ports for APX Radio
  • 19"  Shock Rack Case
  • 2 Delay Modules
  • Antenna Patch Panel on Rear

Six (6) Radio Systems

  • 19"  Desk Top Rack Case
  • Antenna Patch Panel on Rear
  • Pelican-Storm Case with Handle & Wheels
  • Antenna Patch Panel above Radios

Three (3) Radio Systems

  • Lightweight 19" Rack Case
  • Antenna Patch Panel on Rear

Four (4) Radio Systems

QuickLinx-M Examples

  • Pelican-Storm Case with Handle & Wheels
  •  Panel with 2 Antenna Ports, 2 Walk-up Ports  & 2 Charging Ports for Portable Radios above Mobile Radios
  • 2 Delay Modules  on TX/RX  Audio Adjustment Panel
  • Lightweight 19" Rack Case
  • Antenna Patch Panel on Rear

Two (2) Radio Systems

= Connectivity Simplified =

  • Lightweight 19" Rack Case
  • Integrated HF Radio
  • Antenna Patch Panel on Rear
  • Lightweight 19" Rack Case
  • Headset Jacks on C250 Panel
  • Antenna Patch Panel on Rear

Five (5) Radio Systems

  • Lightweight 19" Rack Case with Handle & Wheels
  • Antenna Patch Panel on Rear
  • 19"  Shock Rack Case
  • Integrated Paging Encoder
  • Antenna Patch Panel on Rear
  • 19"  Shock Rack Case  with Handle & Wheels
  • Headset Interface Jacks on C250/C251 Panel
  • 4 Walk-up Ports
  • Extra Space at top for future expansion
  • Antenna Patch Panel on Rear

Eight (8) Radio Systems

  • Lightweight 19" Rack Case
  • Walk-up Port for 4th Radio
  • Headset Jacks on C250 Panel
  • Antenna Patch Panel on Rear
  • Lightweight 19" Rack Case
  • Antenna Patch Panel on Rear
